Electric Surface Swimming Pool Circulation Water Pump
Smooth operation, less vibration；
No leakage with carbide seals;
Low noise, only very weak sound of motor
Less failure rate because of simple and reasonable structure and key part adopt the high tech quality.
Convenient maintenance, easy for replacement of seals, bearings
Description
HLB MXB series circulation pump for swimming pools are a new generation energy saving and environment friendly pump. It has excellent performance and high reliability, reasonable structure and beautiful outlook.
Data sheet:
Model | MXB075 | MXB100 | MXB150 | MXB200 | MXB250 | MXB300 |
P/N | 90011 | 90012 | 90013 | 90014 | 90015 | 90016 |
Power(V) | 220240 | 220-240 | 220-240 | 220240 | 220-240 | 220240 |
Phase | 1 | 1 | 1 | 1 | 1 | 1 |
Frequency(HZ) | 50 | 50 | 50 | 50 | 50 | 50 |
Current | 3.2 | 3.8 | 5.2 | 7 | 8.66 | 10 |
watt | 0.55 | 0.75 | 1.1 | 1.5 | 1.85 | 2.2 |
HP | 0.75 | 1 | 1.5 | 2 | 2.5 | 3 |
Rotation speed | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
IP rate | 55 | 55 | 55 | 55 | 55 | 55 |
Insulation | F | F | F | F | F | F |
Water inlet temp.(°C) | 50 | 50 | 50 | 50 | 50 | 50 |
Water outlet temp.(°C) | 50 | 50 | 50 | 50 | 50 | 50 |
noise(dB) | 61 | 62 | 63 | 65 | 67 | 69 |

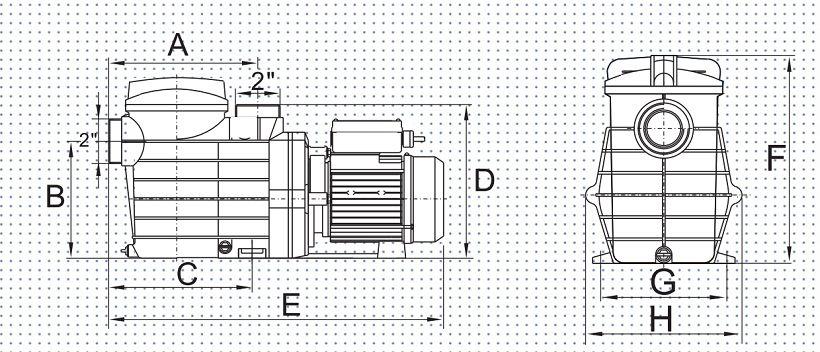

Drawing of pump and dimension：
A | B | C | D | E | F | G | H | Inlet | Outlet | weight | |
mm | Inch | inch | kg | ||||||||
MXB075 | 264 | 207 | 254 | 272 | 593 | 320 | 194 | 240 | 2 | 2 | 12 |
MXB100 | 264 | 207 | 254 | 272 | 593 | 320 | 194 | 240 | 2 | 2 | 13.5 |
MXB150 | 264 | 207 | 254 | 272 | 593 | 320 | 194 | 240 | 2 | 2 | 15.5 |
MXB200 | 264 | 207 | 254 | 272 | 593 | 320 | 194 | 240 | 2 | 2 | 17.5 |
MXB250 | 264 | 207 | 254 | 272 | 593 | 320 | 194 | 240 | 2 | 2 | 18.5 |
MXB300 | 264 | 207 | 254 | 272 | 593 | 320 | 194 | 240 | 2 | 2 | 20 |
Features:
Smooth operation: the absolute concentration of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.
Drip water does not leak: Carbide seals of different materials ensure that there is no leakage in the transportation of different media.
Low noise: The water pump supported by two low-noise bearings runs smoothly. Except for the weak sound of the motor, there is almost no noise.
The failure rate is low: the structure is simple and reasonable, and the key parts adopt the world-class quality; the matching, the trouble-free working time of the whole machine is greatly improved.
Convenient maintenance: replacement of seals, bearings, easy and convenient.
It occupies more land: the exit can be left, right and up, which is convenient for pipeline installation and space saving.
